K-FLEXSTSHEETS & TUBES:
Nitrile rubber is a versatile and flexible closed cell elastomeric insulation suitable for applications up to an a p p roxi m a te m a x i m u m c o nti n u o u s o p e rati n g temperature of -200”C to -I-116°C. K- Flex Insulations are available with Class ‘O’ and Class ‘1 ‘.
Application of Thermal insulation :
Refrigeration pipe work, heating and ventilation pipe work, air-conditioning pipe work.
Heating and ventilation ductwork systems. Vessels and curved or irregular surfaces.
Thickness & Density:
Thickness: 06, 09, 13, 16, 19, 25,32, 40 and 50mm.
Density: 40-60kg/M3.
K-Flex sheets are also available with
various protective coverings:
* Factory laminated Aluminium Foil facing
* Factory laminated IC-Clad (Glass cloth) facing
* Self — Adhesive
* Anti-Microbial protection
* IN-Clad & AL-Clad facing
Fire behaviour:
Produces adhering to highest safety norms for fire i.e FM Global approved. K- Flex does not generate flaming droplets. Has very low flame spread and fire propagation index. It’s certified as Class O as per BS 476 Part6 & Part 7.
It is self extinguishing material & High performance acoustic insulation K- Fonik open cell processed elastomeric foam ensures the ideal acoustic insulation for all kind of HVAC & Industrials noise control Applications. also UL 94 approved.
Applications of Acoustic insulation :
* Builcling & Industrial Noise Control
* Air-conditioning Duct ” AHU Rooms
* Diesel generator set enclosure lining.
OPEN CELL INSULATION:
Thickness & Density And Variants:
* Thickness — 10mm, 15 mm, 20mm, 25mm, 30mm, 40mm and 50mm
* Density – 140 — 180 Kg/M3
* Variants — Plain, Antimicrobial Protection, With Self-Adhesive
OPEN CELL INSULATION:
Thickness & Density And Variants:
* Thickness — 10mm, 15 mm, 20mm, 25mm, 30mm, 40mm and 50mm
* Density – 140 — 180 Kg/M3
* Variants — Plain, Antimicrobial Protection, With Self-Adhesive

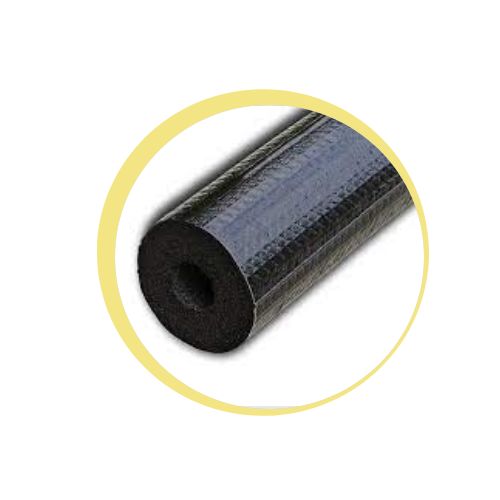

K-FLEX SOLAR HT (EPDM)
Elastomeric EPDM (Ethylene – Propylene Diene Monomer) rubber based insulation with excellent mechanical properties suitable for high temperature & Good UV resistance
Available thickness and ID:
K-Flex EPDM is available in 13mm, 19mm & 25mm wall thickness, non-slit 2meter length ranging from l Omm ID to 89 mm ID and Rolls comes with 13mm,19mm, 25mm and 32mm thick.
Applications:
K-Flex EPDM can be used for outdoor applications with service temperatures ranging from -40”C to 150°C.
It’s ideal for use on Industrial and solar system. It will help on increased energy eHiciency.

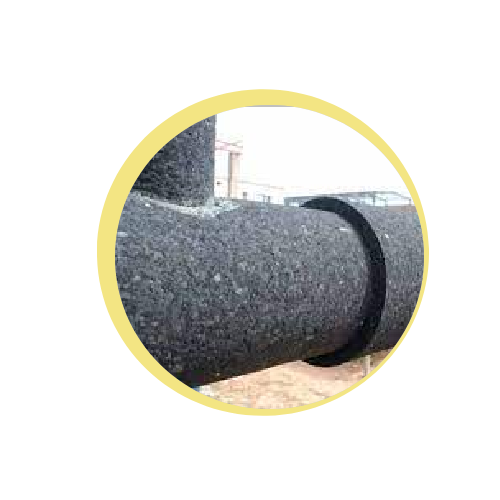

K-FLEX TITAN
K-Flex TITAN is a flexible elastomeric rubber insulation with co-extruded co-polymer blend |acket tubular insulation. It is a polymeric |acketed material that offers excellent flexibility and weather resistance.
It is Self- Extinguishing, does not drip i.e Fire resistance.
Available thickness and ID:
K-Flex TITAN is black in colour and is available in 13 mm, 19mm & 25mm wall thickness, non- slit 2meter length ranging from 6mm ID to 60mm ID across all wall thicknesses and additional id’s depend on wall thickness.
Applications: K-Flex TITAN can be used for outdoor applications with service temperatures ranging from -50”C to 104°C. It is ideal for use on HVAC, Plumbing applications, VRF and Split Ac’s etc

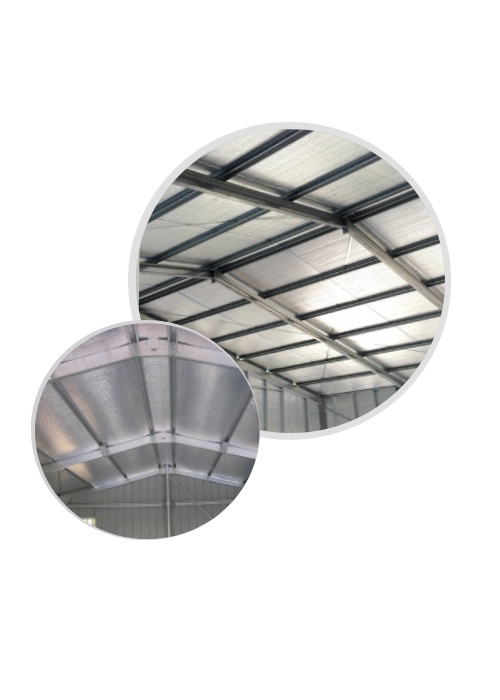

K-FLEXXLPE INSULATION
K-Flex XLPE is Crosslinked Polyethylene / Polyolefin Insulation. XLPE is used for various application areas requiring Low Thermal Conductivity and Fire Class approved product with very Flexible still tough Insulation material which offers ease of installation along with durable life span
Application Areas :
* Air conditions Ducting
* Roof Insulation
* Underdeck Insulation
* Tank Insulation
* WaII Insulation and many other interior
Available Thickness : 3mm to 100mm Thickness
Facings : Aluminium foil & Glass Cloth (IC Clad)
Density : 28 Kg/M3 T 10%
Dimensions : l .2 Meter Width and Length will be according to the Thickness.
Thermal Conductivity : 0.0322 W/m.k @ 23°C 0.0361 W/m.k @ 36°C * Solar Systems
Application Sectors :
* Heating, Ventilation and Air Conditioning Refrigeration
* Pharmaceuticals
* Solar Systems
* Automotive
* Hospitals * Industrial PEB’s
* OEM
* Marine & Shipbuilding Industries
K-FLEXXLPE INSULATION
K-Flex XLPE is a Flexible Insulation, Because of Flexible it canbe installed at ease on various surfaces.
K-Flex XLPE is designed with Zero VOC, It is Formaldehyde free, It offer excellent Moulcl Growth and Zero Ozone Depletion.
K-Flex XLPE insulation product has been tested and certified for its properties by Third Party International Labs.
K-FIexXLPE is complying with BS 476 PART 6 & 7 Norms
